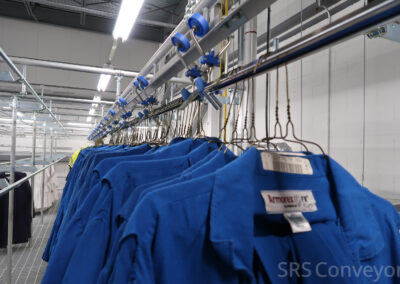

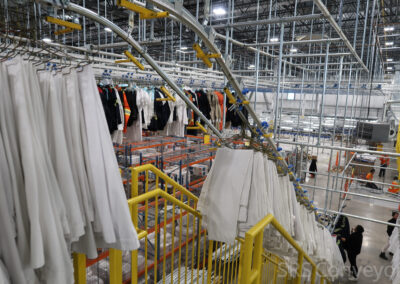

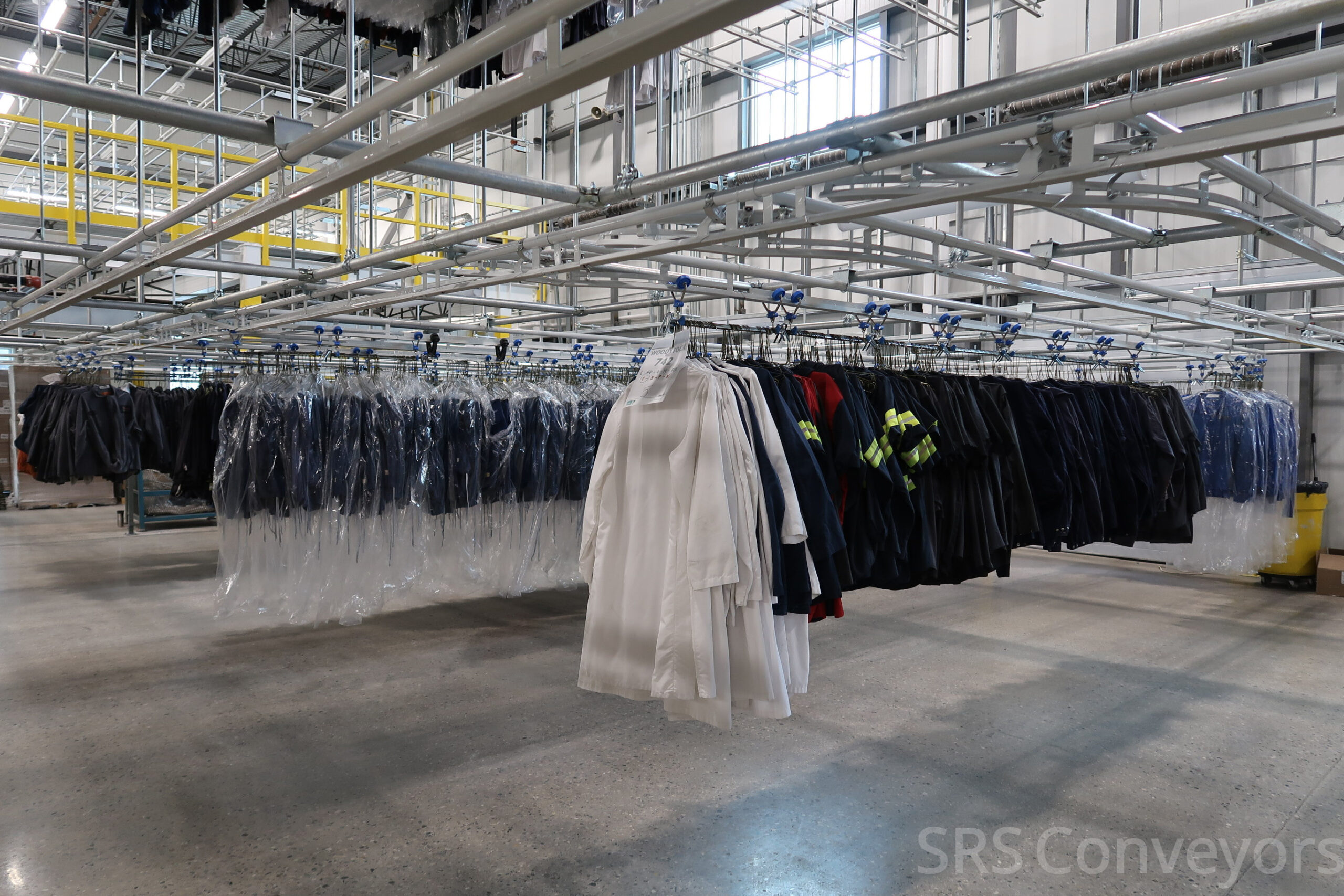

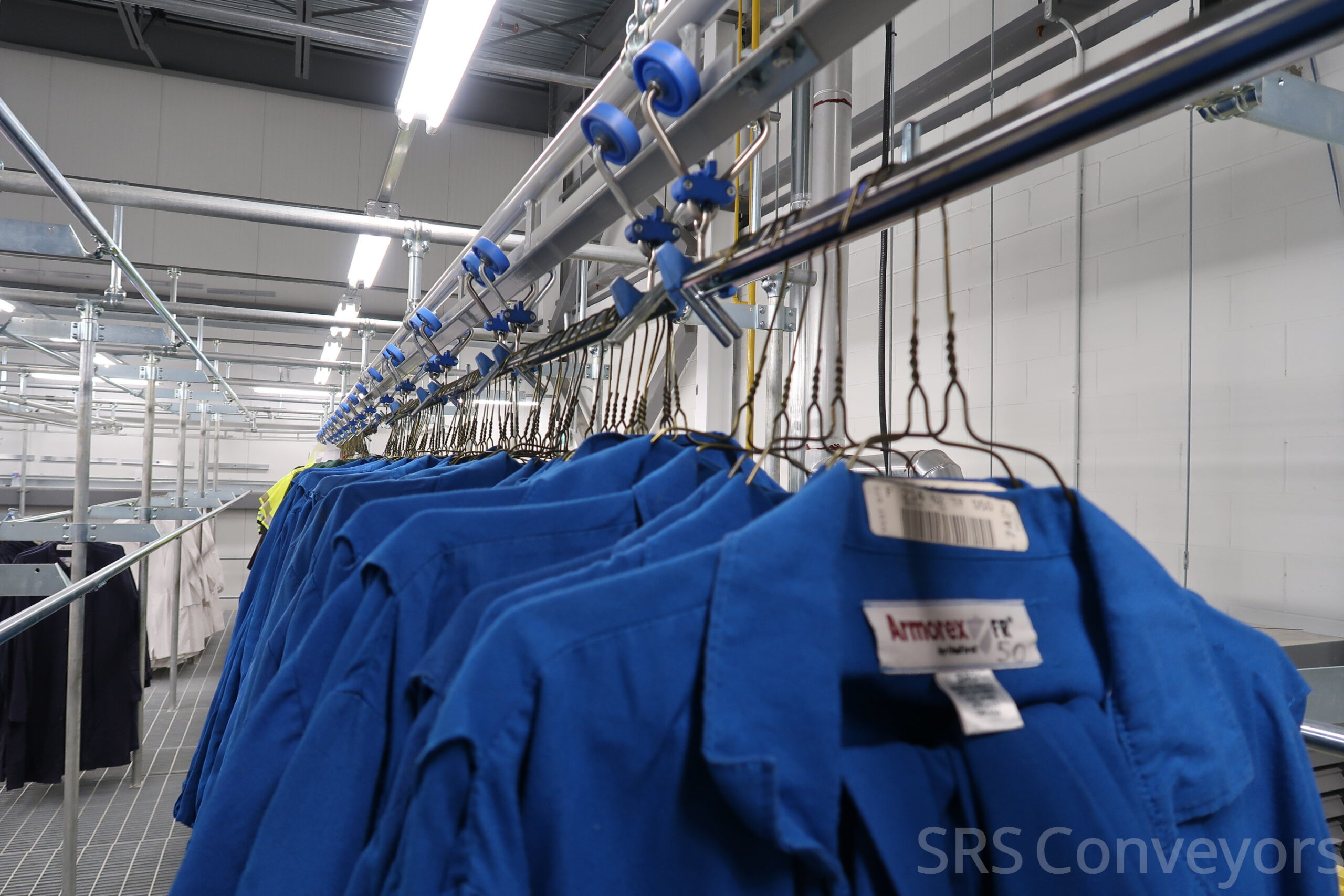

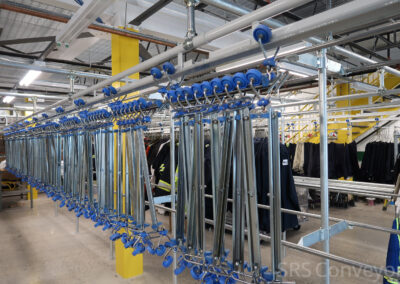

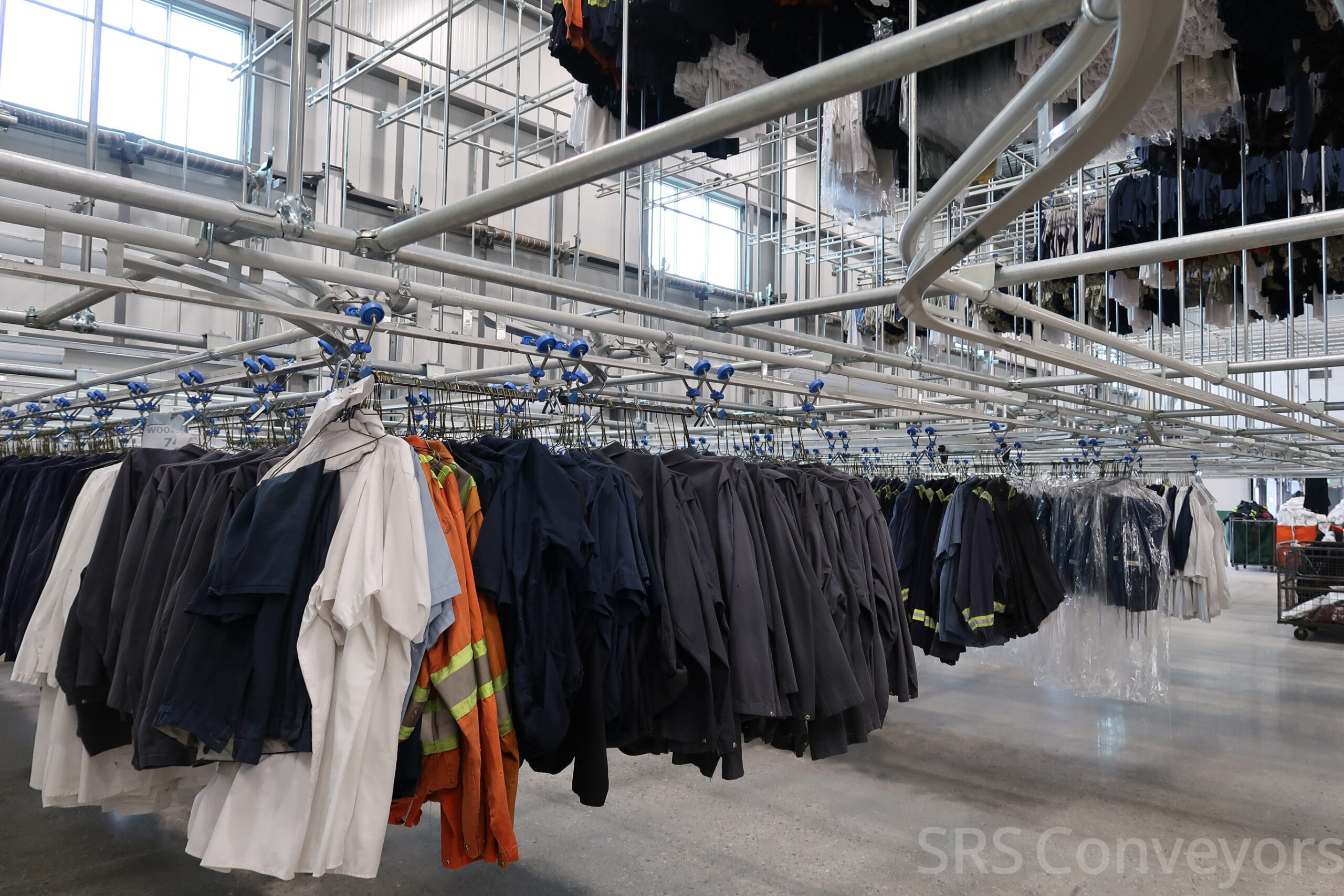

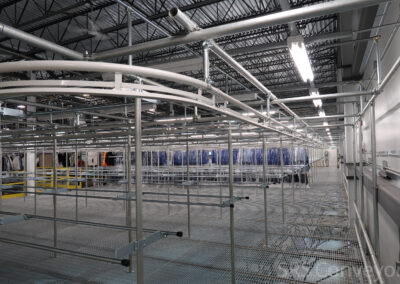

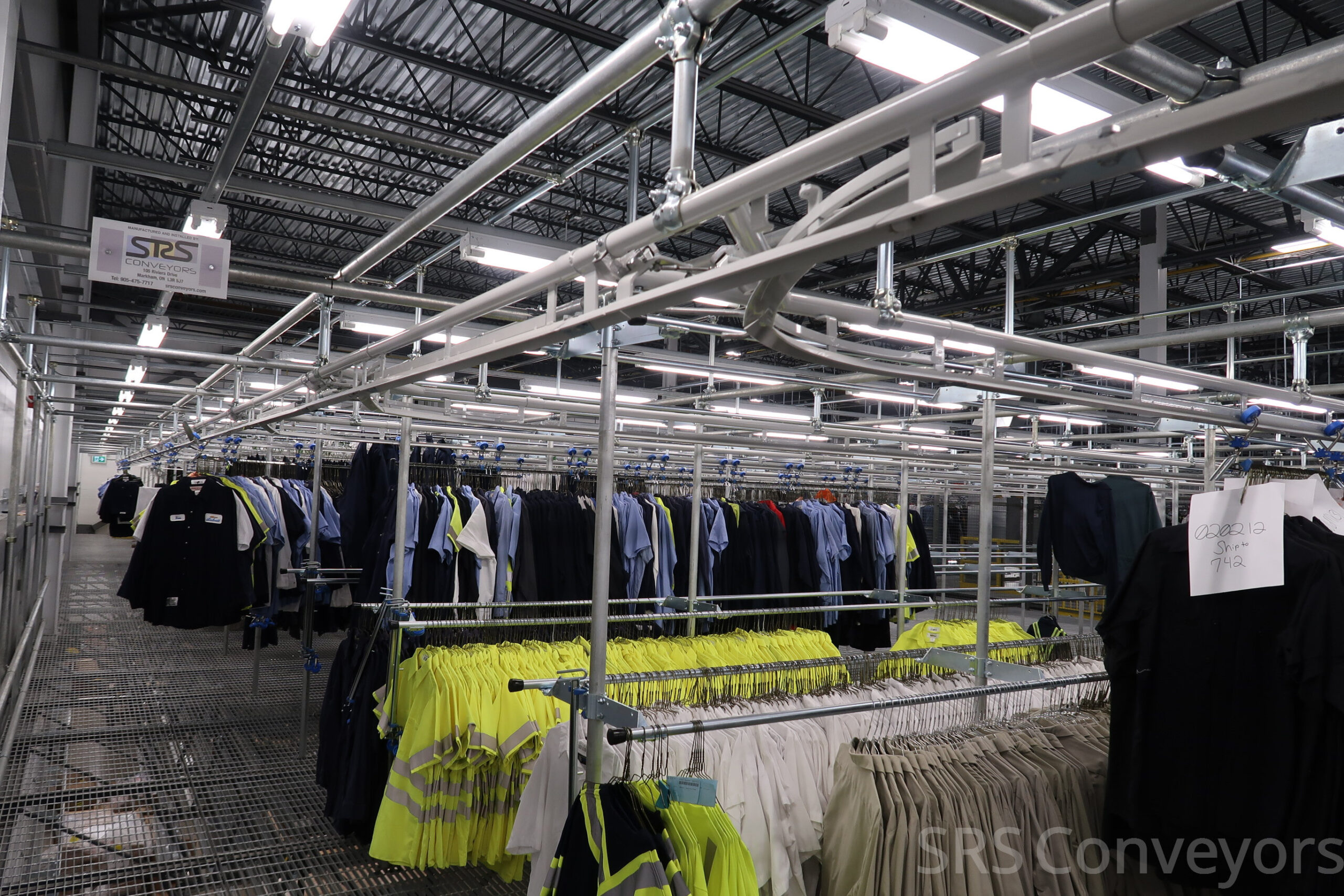

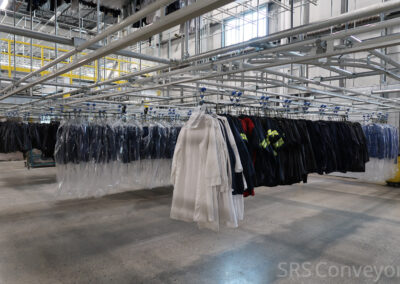

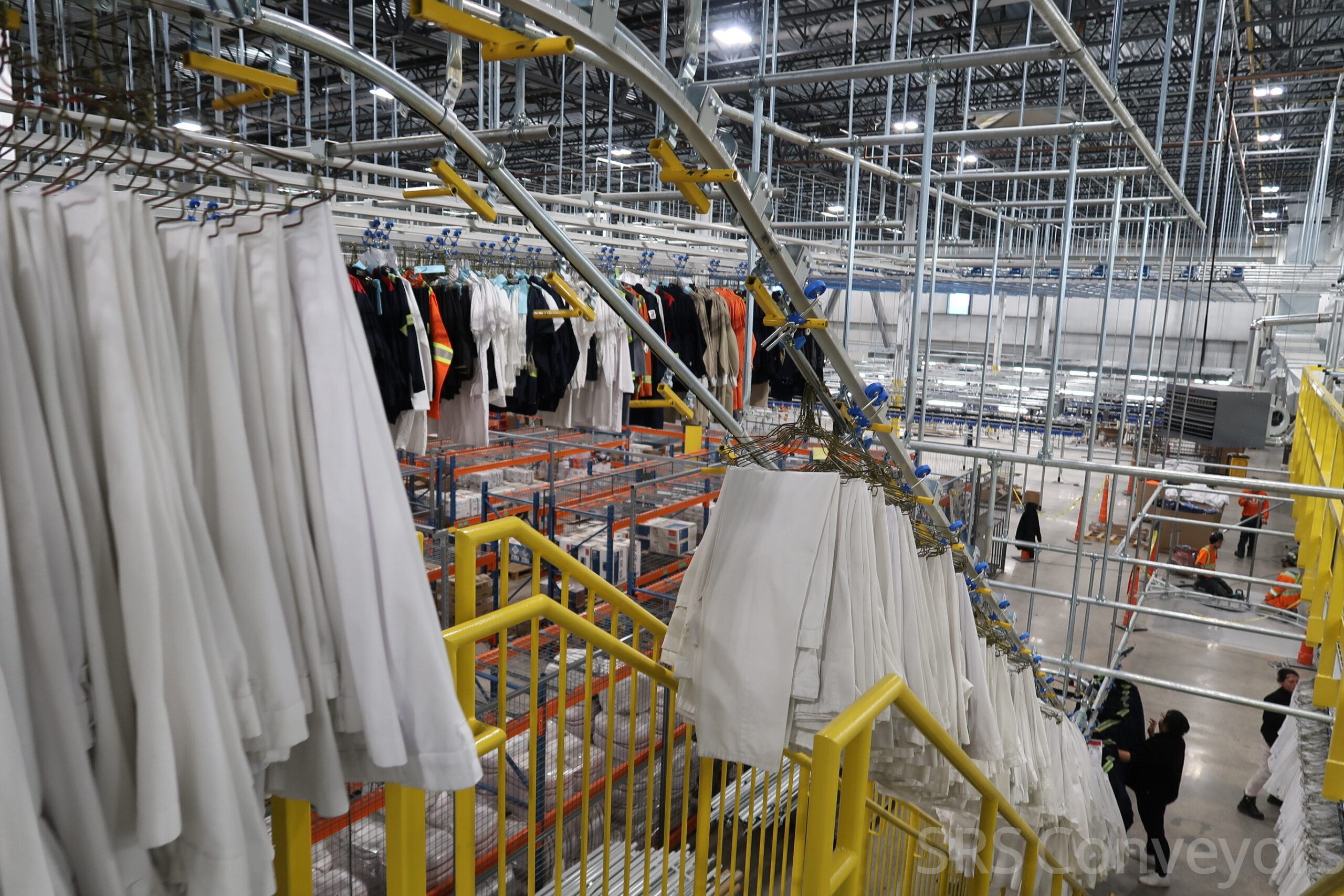

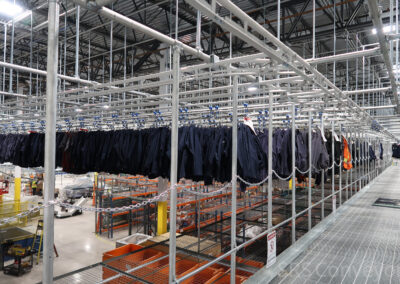

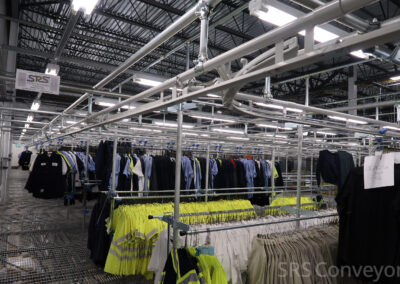

T-500 V-Rail Garment Rail Systems

SRS T-500 Centrally Locked Trolley Systems are ideal for garment manufacturers, distribution centers, laundries and retail industries. Whether you incorporate a manual rail system or our fully automated S 300/400 garment trolley storage and retrieval system SRS can maximize your productivity. This system features automatic loading and unloading of garments. Complete traffic logic controls and power and free coupled with a gravity system to maximize your overhead storage, reduce your footprint, minimize power requirement and conveyor costs.

Features:

Centrally suspended Trolley.

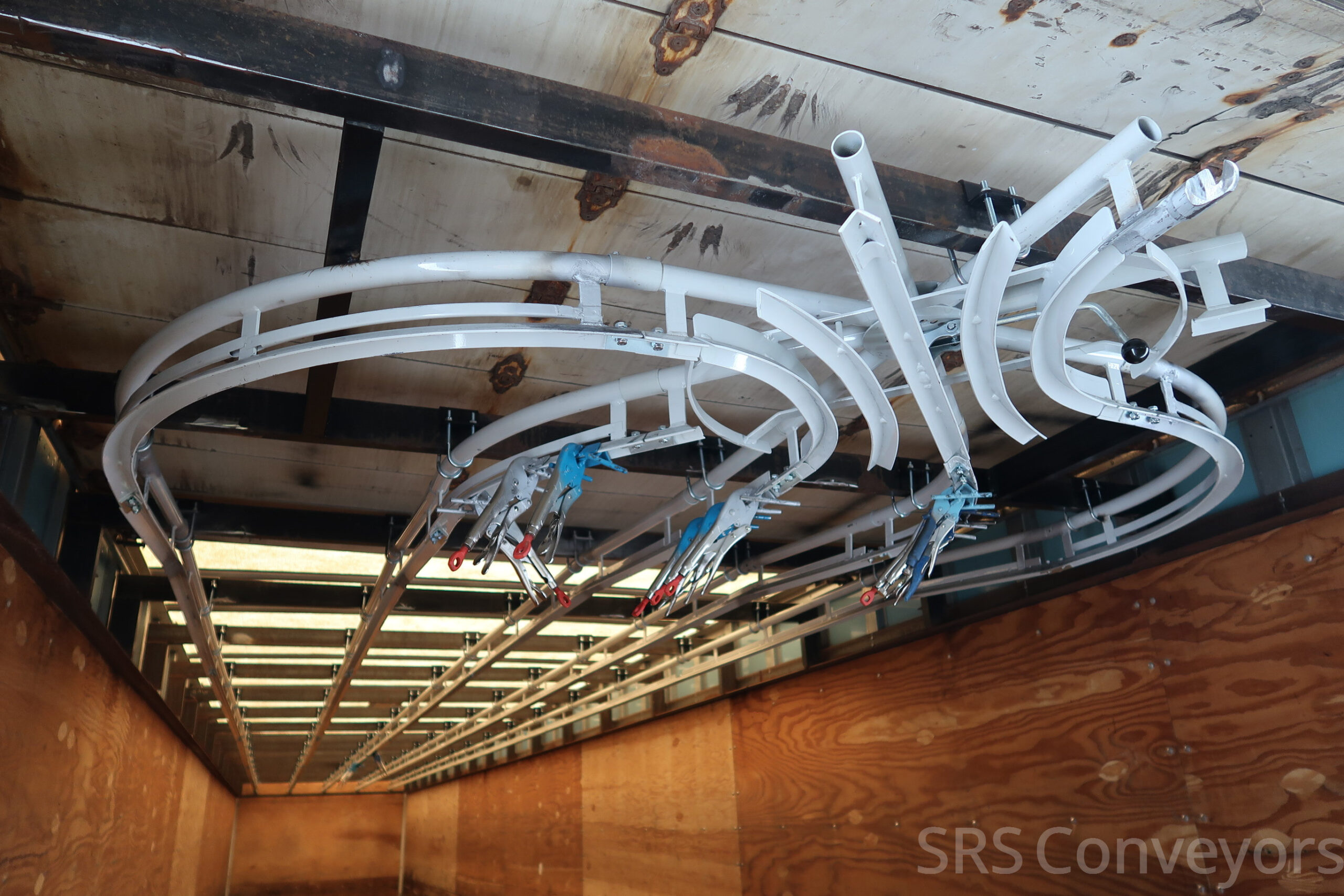

Trolley trains can be pushed and moved around curves without ever decoupling.
Simple, standardized switching systems.
Horizontal and vertical powered rails with very flexible carriers for diverse applications, such as powered trolley storage and retrieval.
Trolley RFID chip and sorting available.
Automation in all areas possible due to limited rotating of roller brackets.
Direction of travel and hanging side are marked with an arrow on the chip housing.
Manual and fully automated loading and unloading of single Trolleys or coupled
Trolley trains.

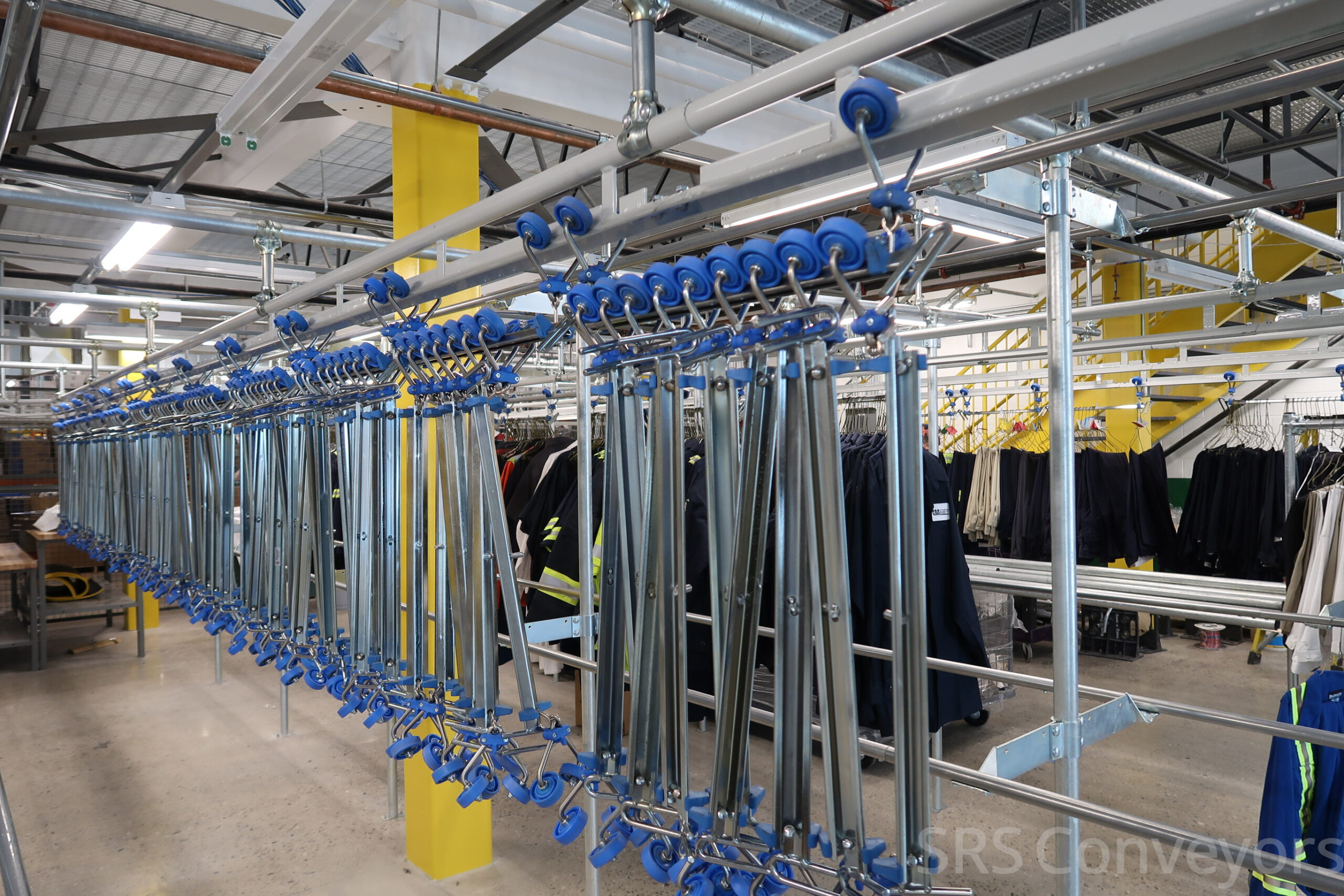

Fully automatic empty Trolley magazine available with parallel stacking.
Compatible with most centre suspended Trolley systems.

T-500 Operation / Design

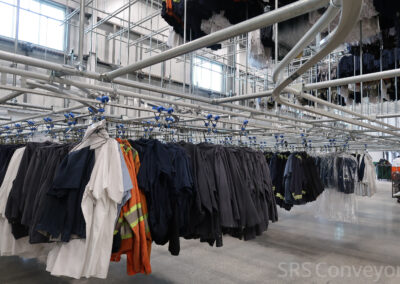

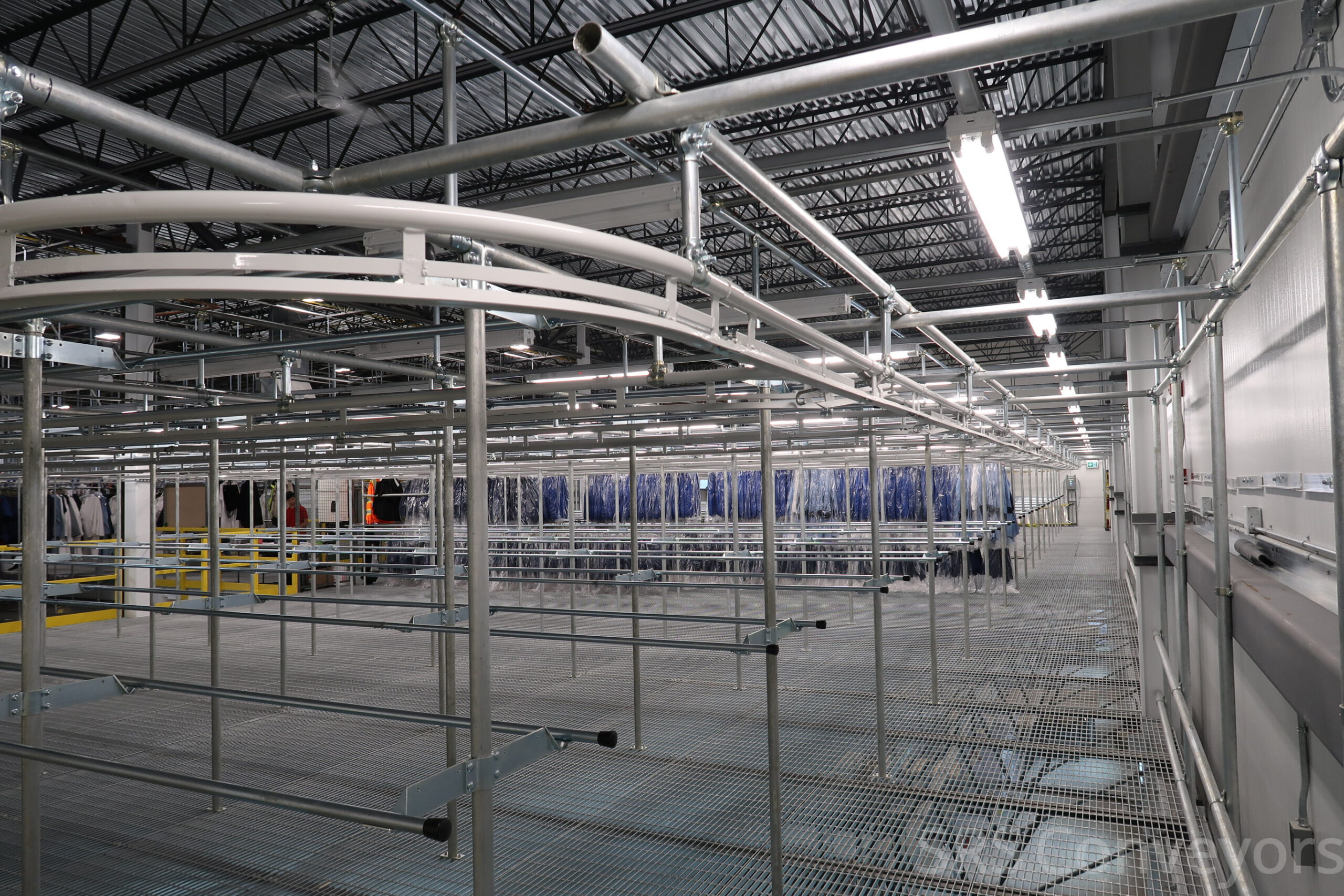

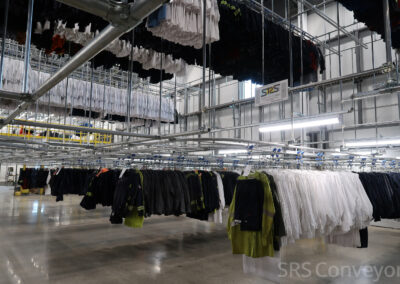

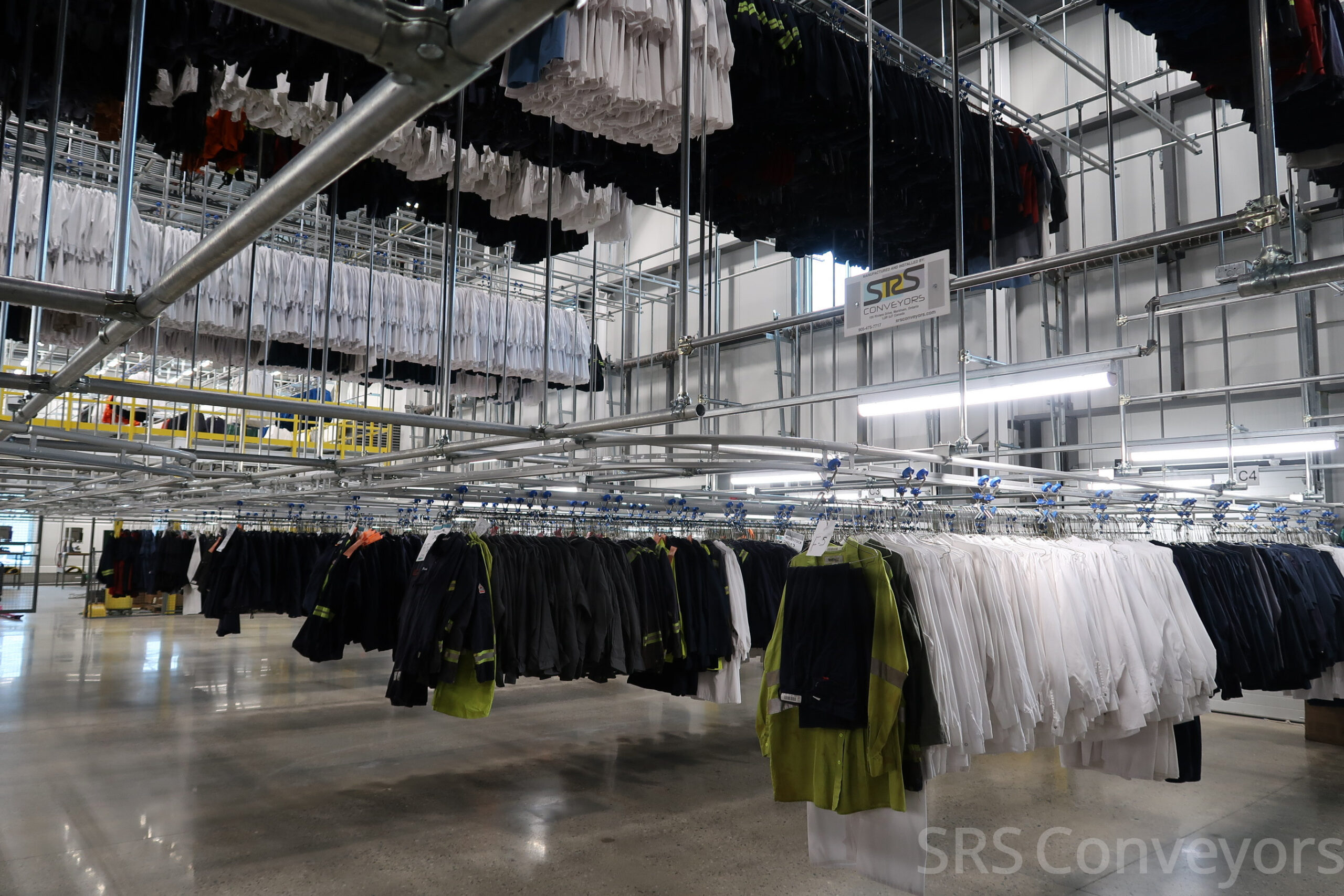

Whether you are in the garment, distribution, manufacturing or laundry uniform industry, finished garments must be stored in the most efficient way and presented for retrieval with a push of a button. This can be accomplished by incorporating our T-500 V-Rail with our fully automated S300/400 Garment Trolley Storage and Retrieval System. Once the garments have been staged and individually categorized via our H800 & H800 LG Conveyors, garments are then ready to be automatically loaded onto trolleys which in turn travel on our T-500 V-Rail.

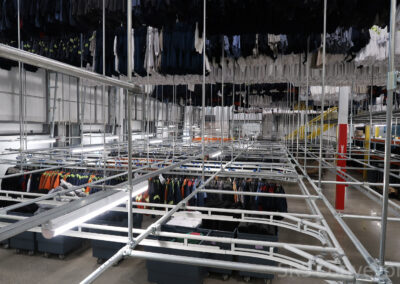

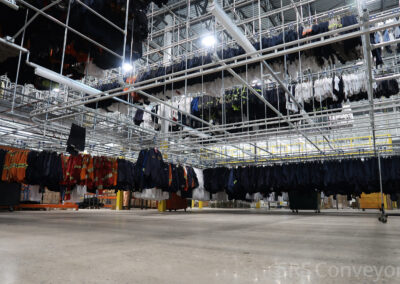

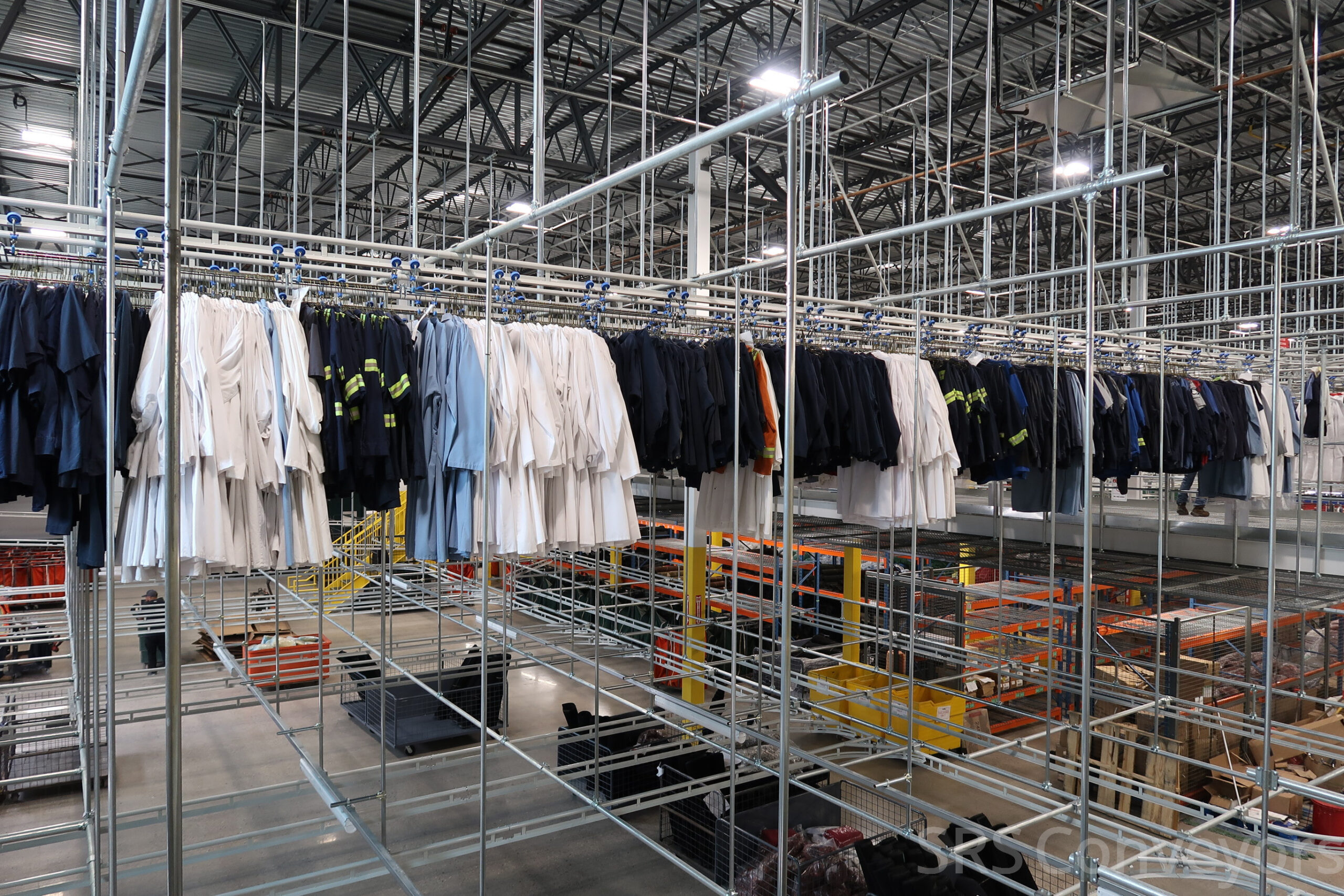

S-300 Garment Storage

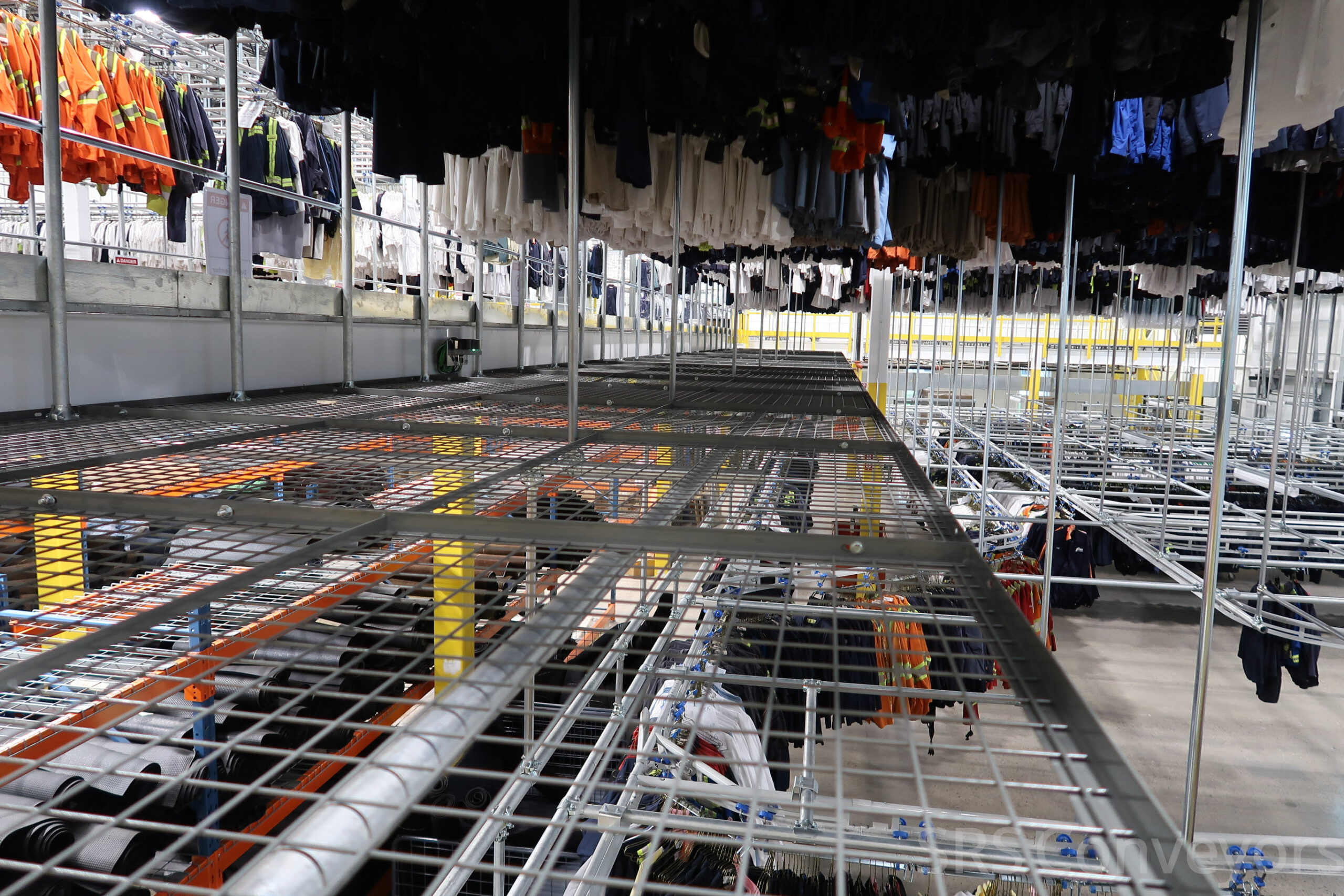

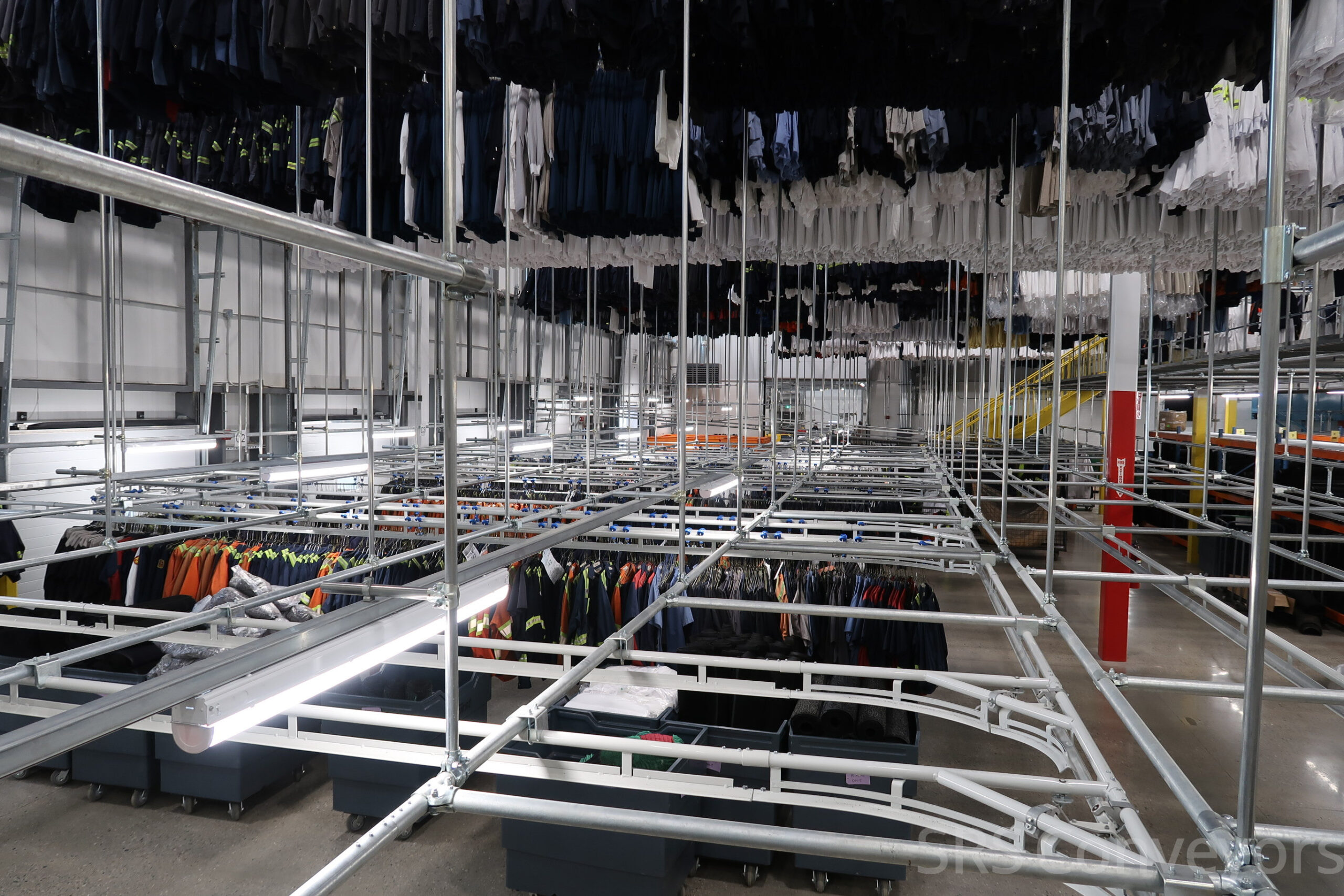

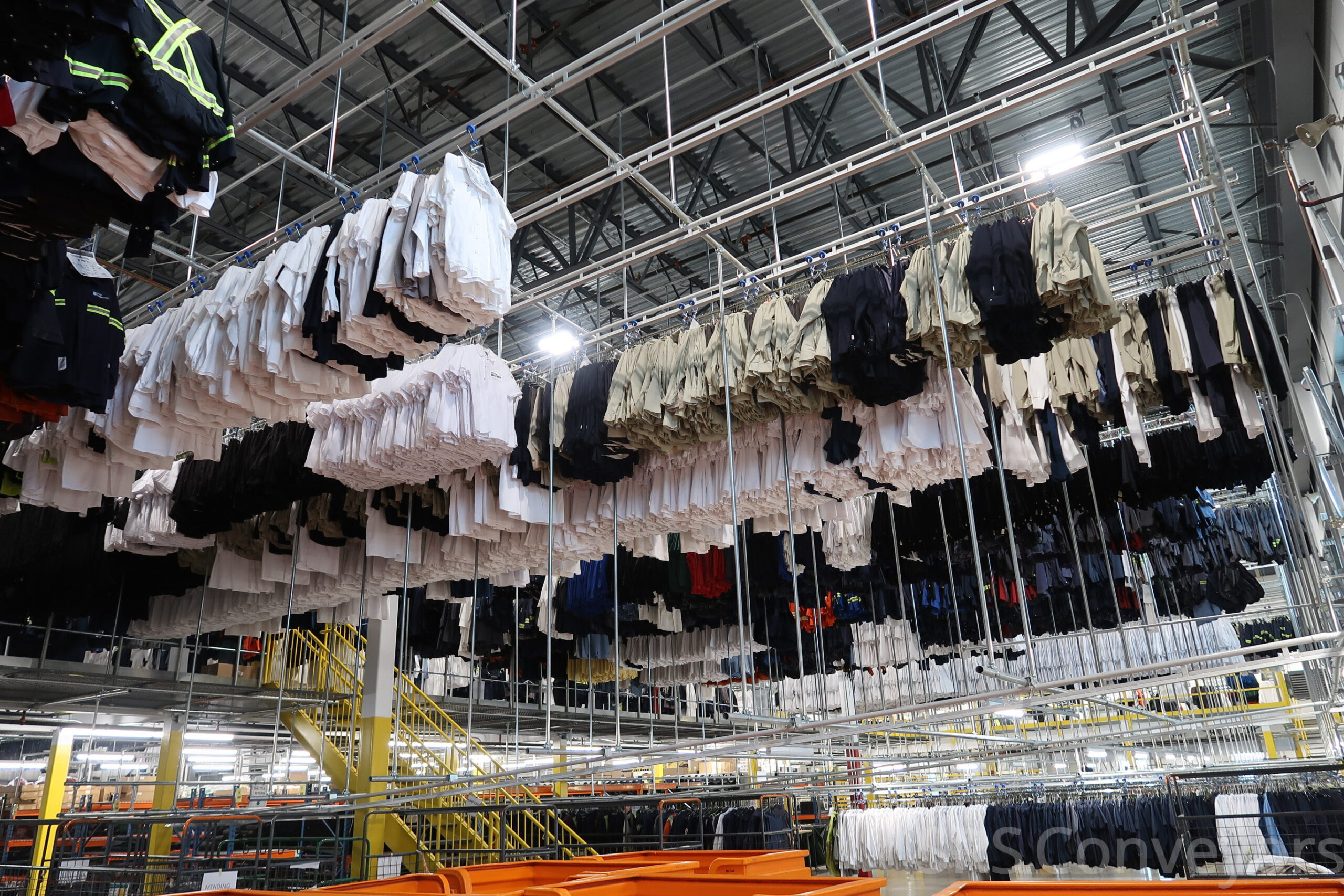

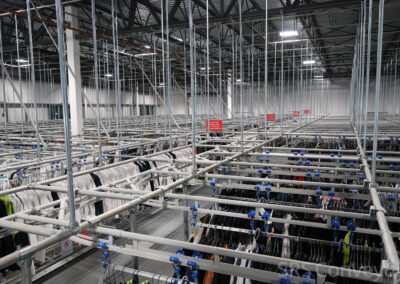

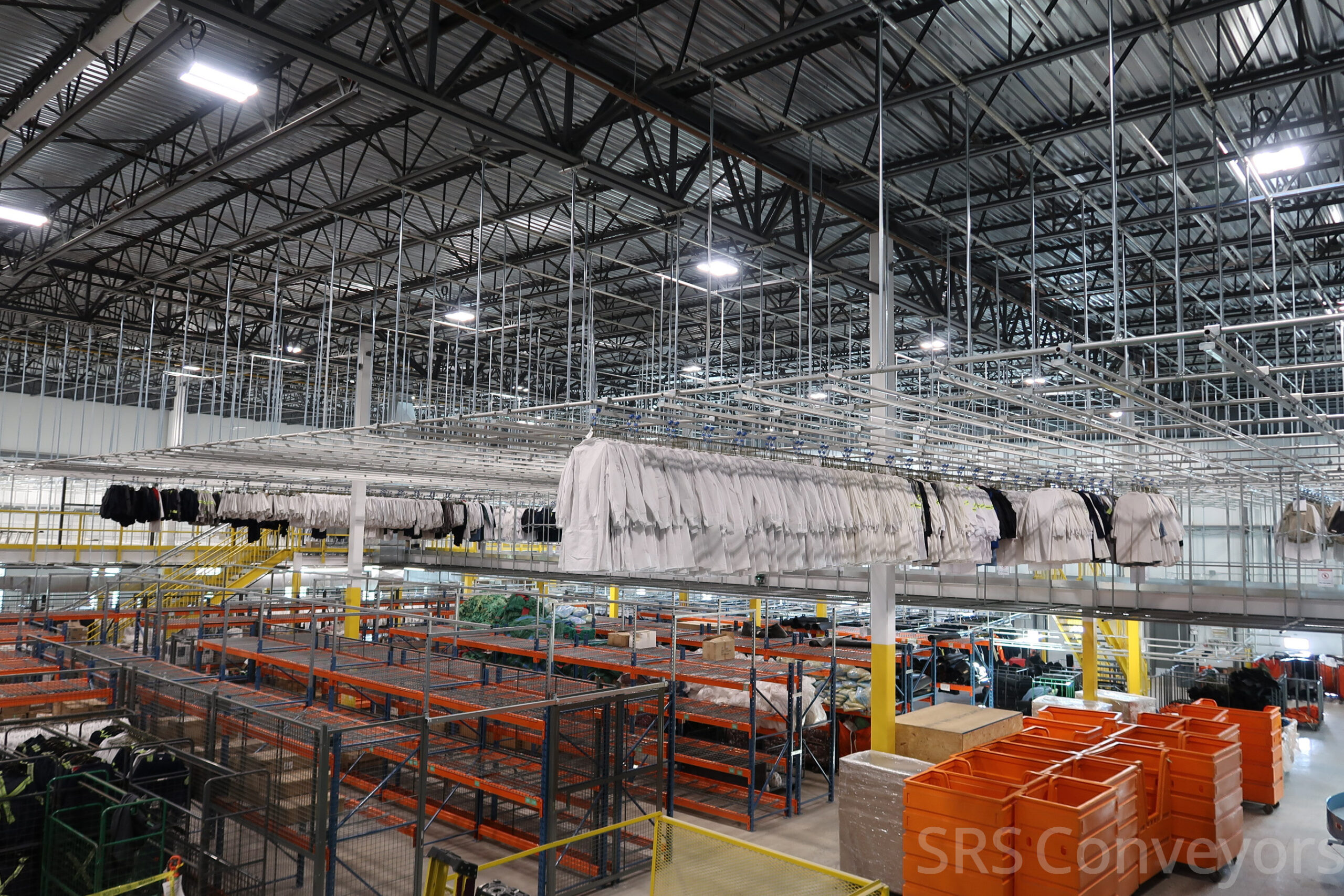

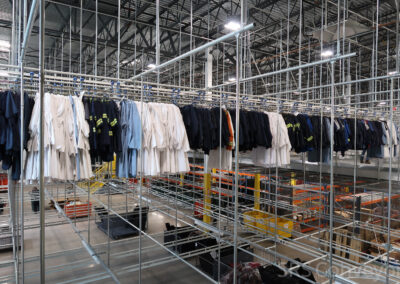

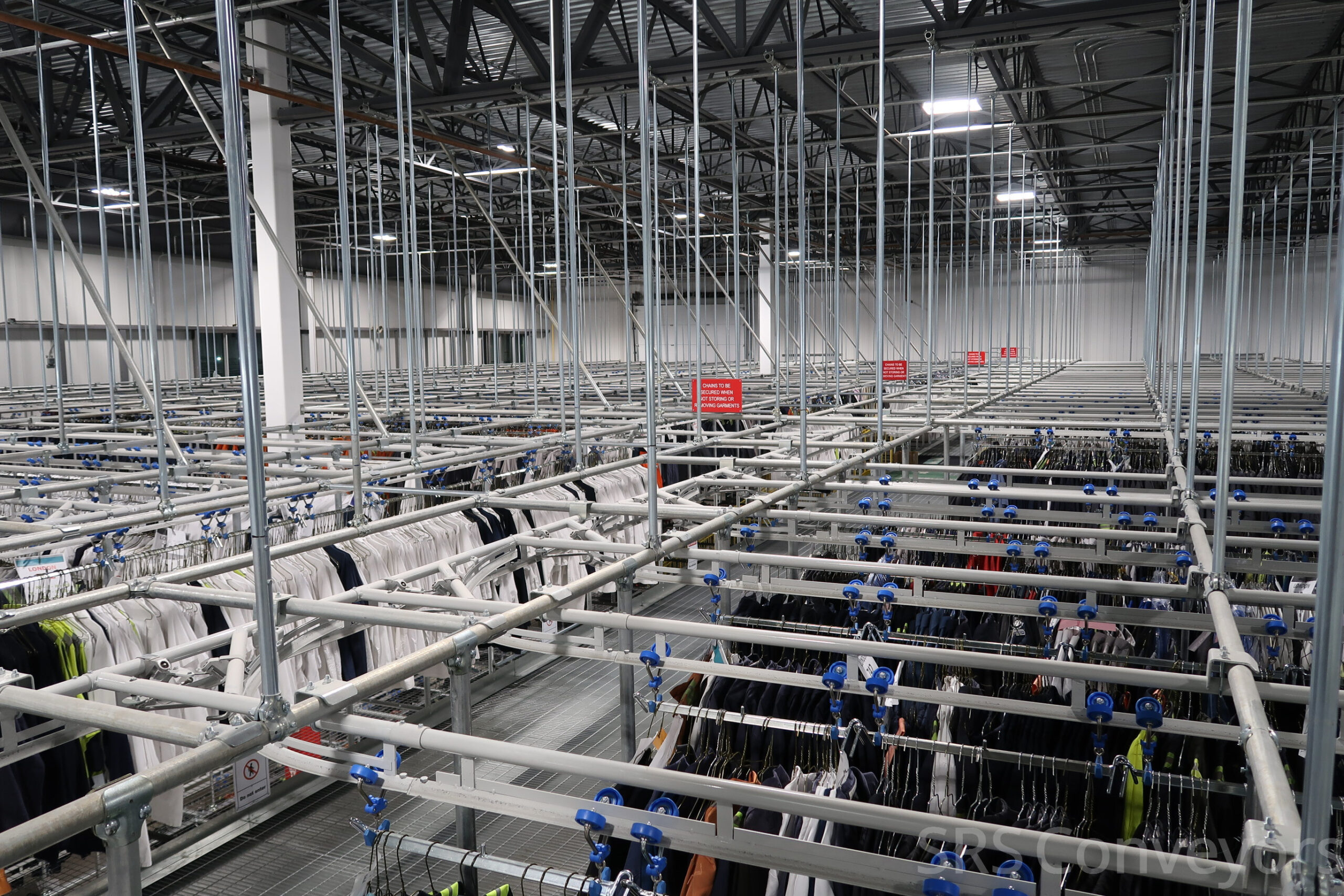

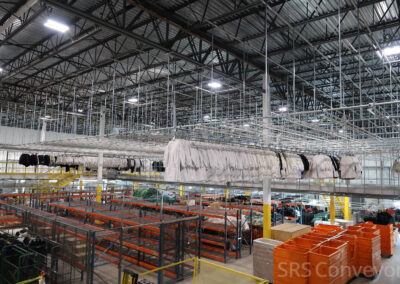

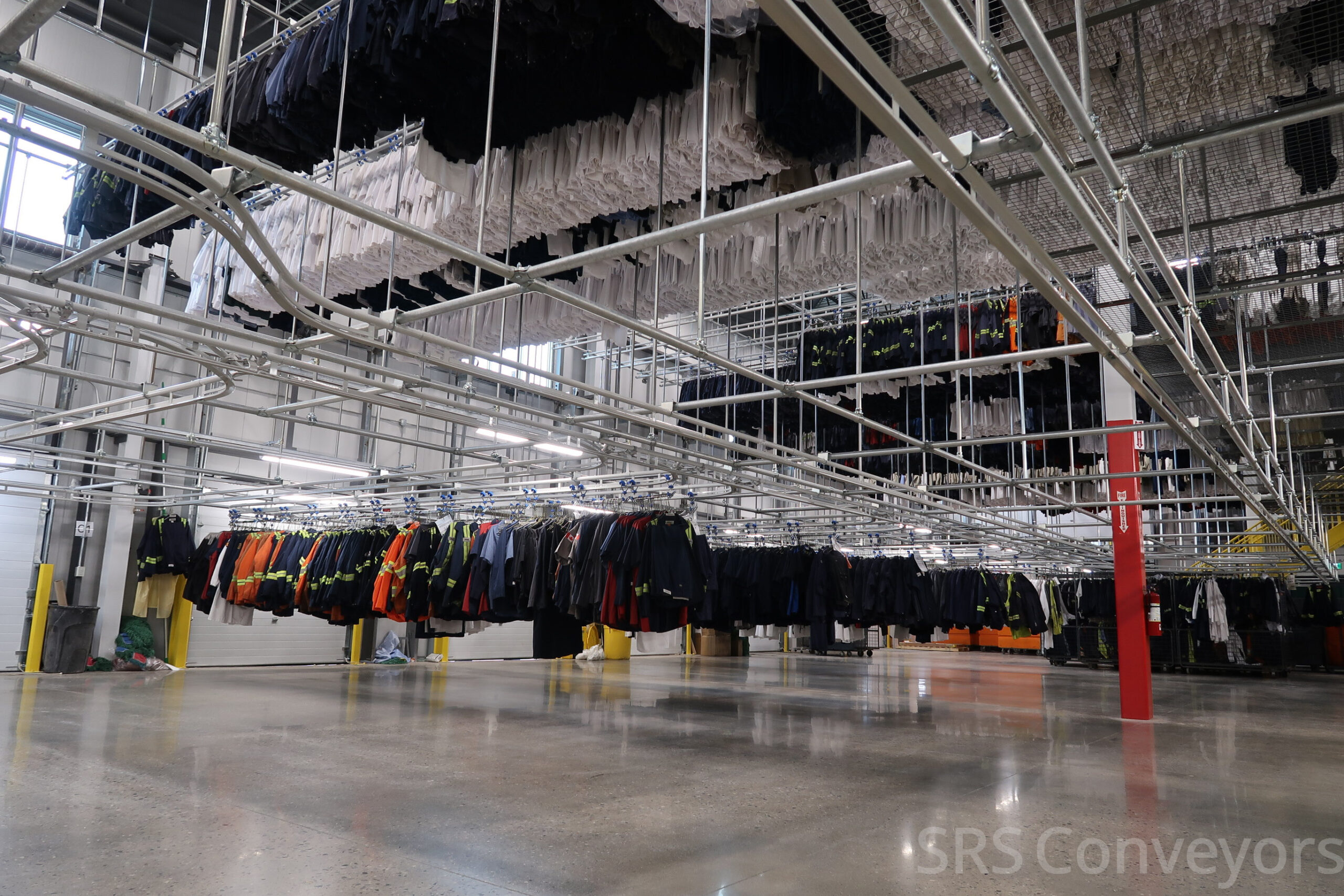

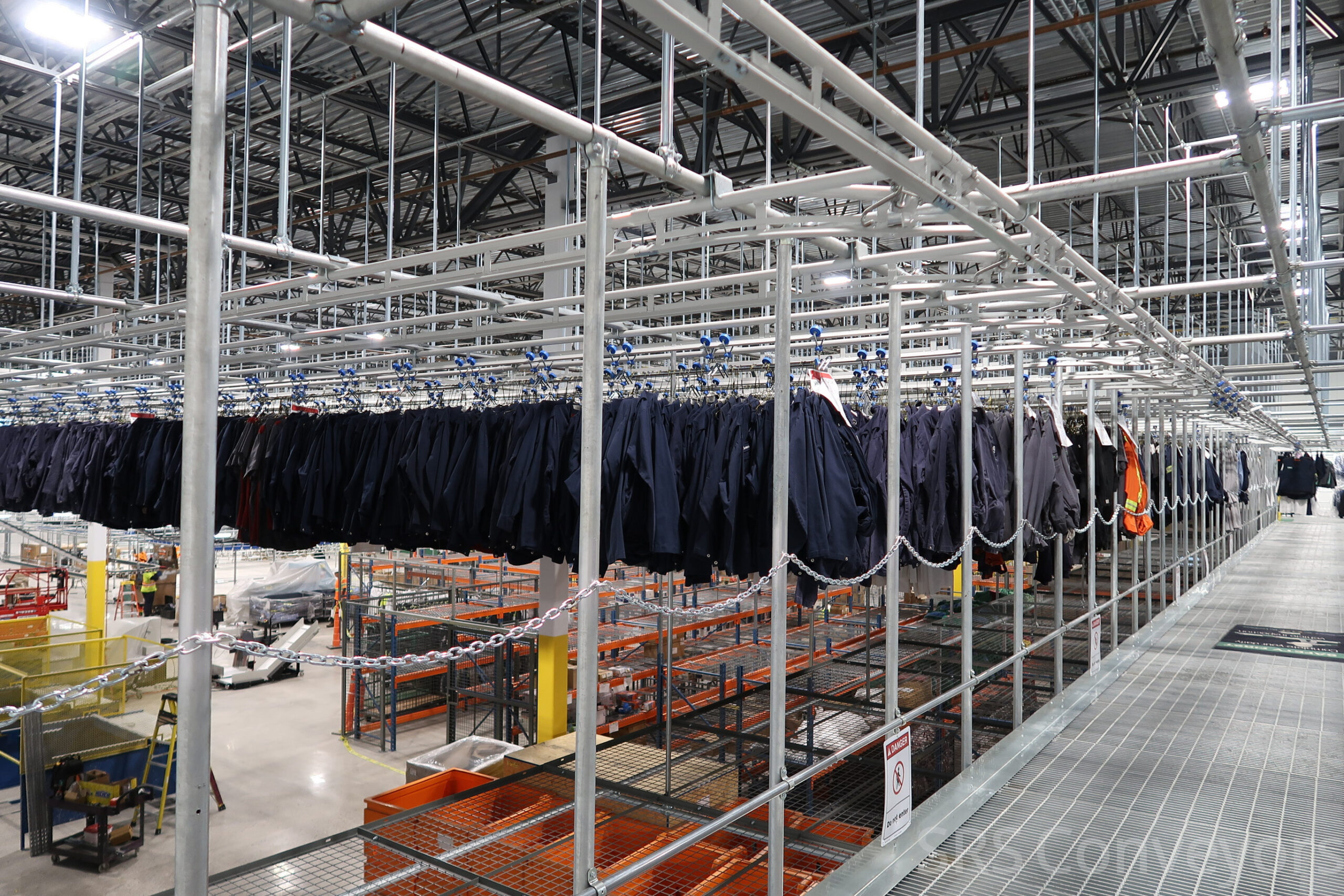

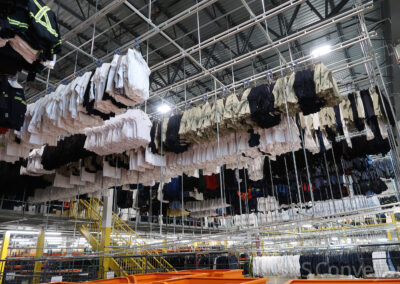

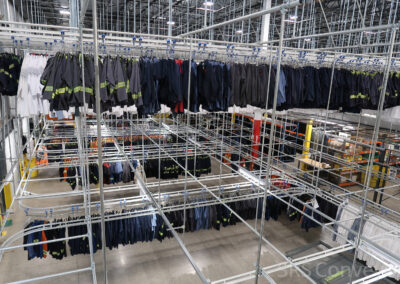

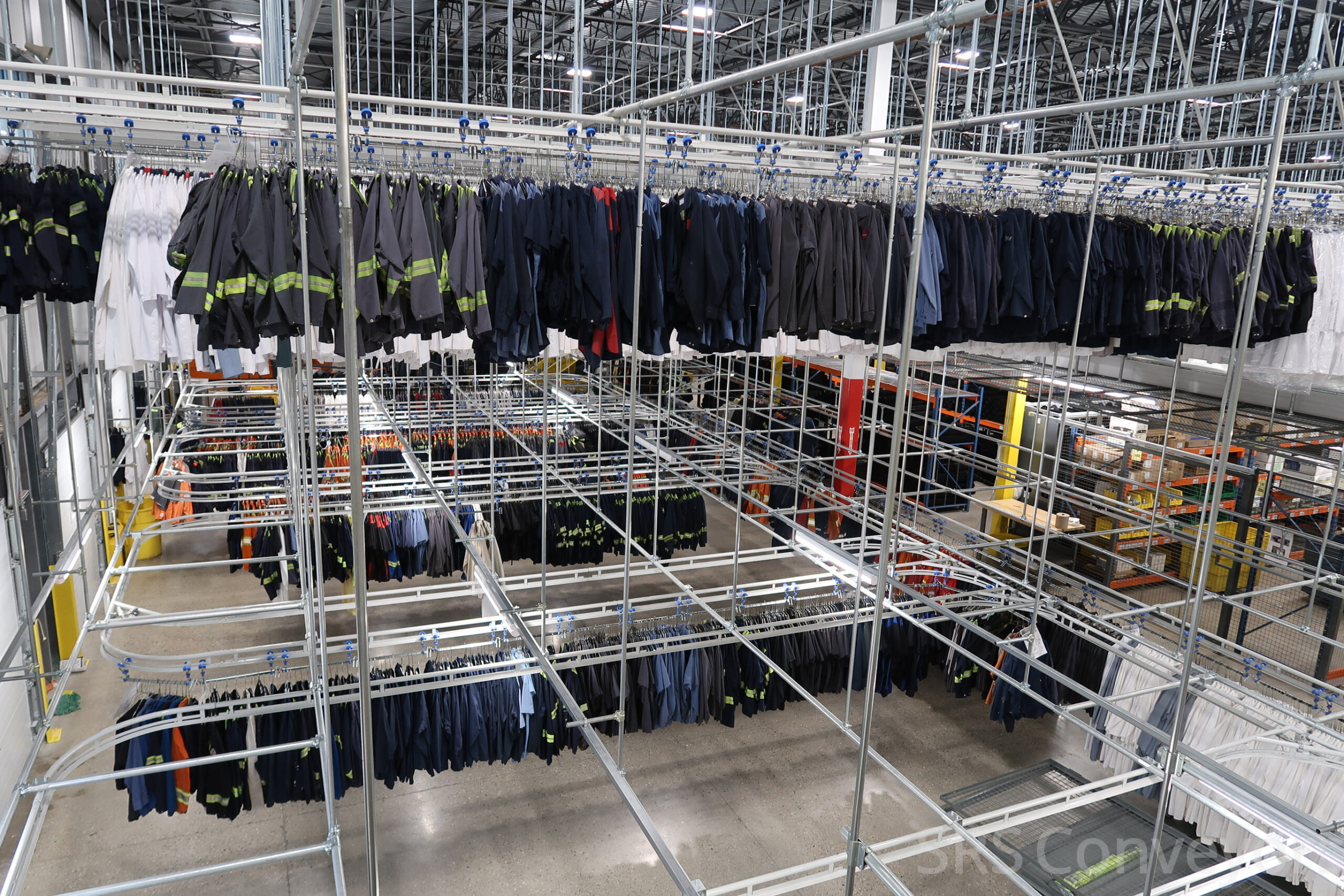

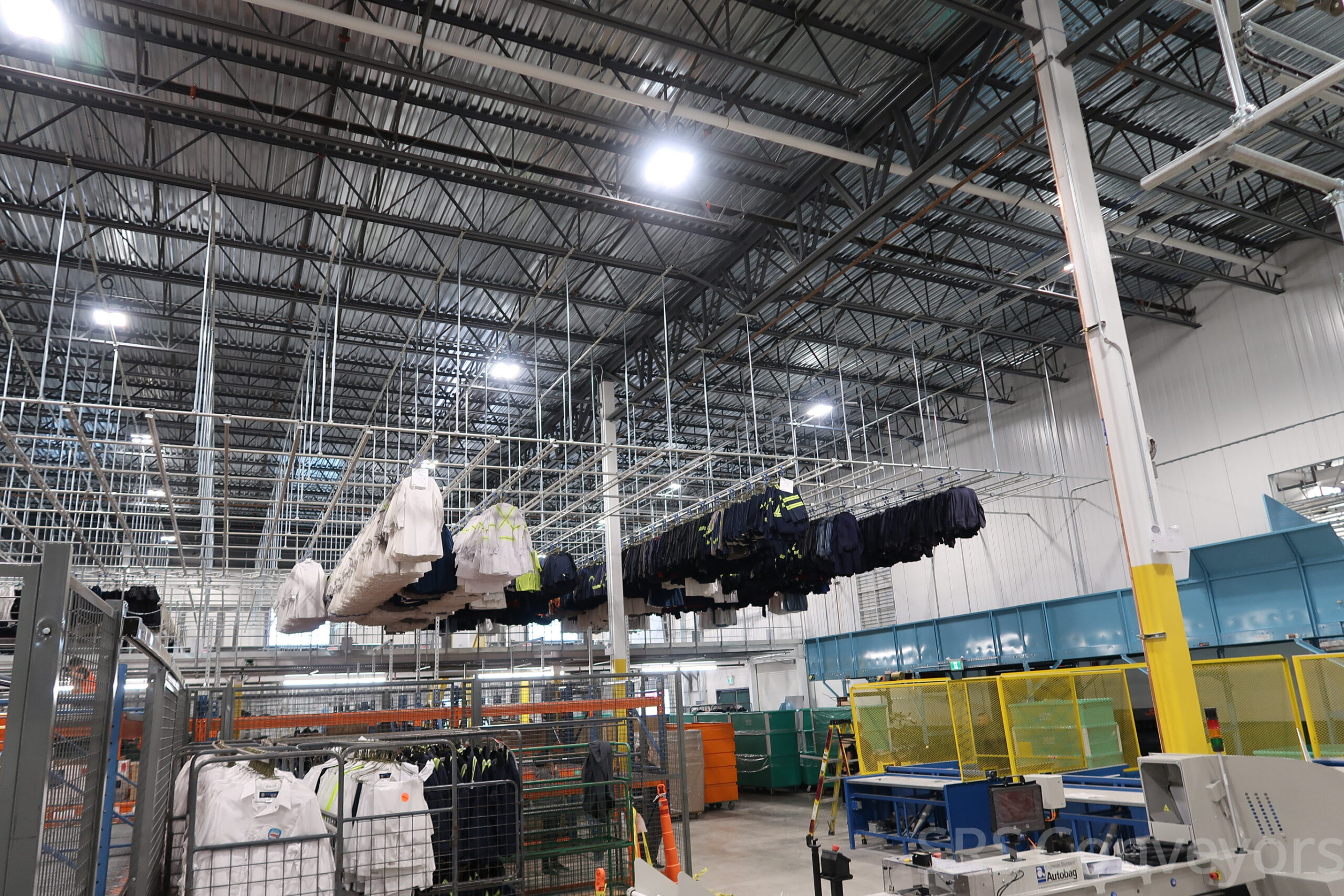

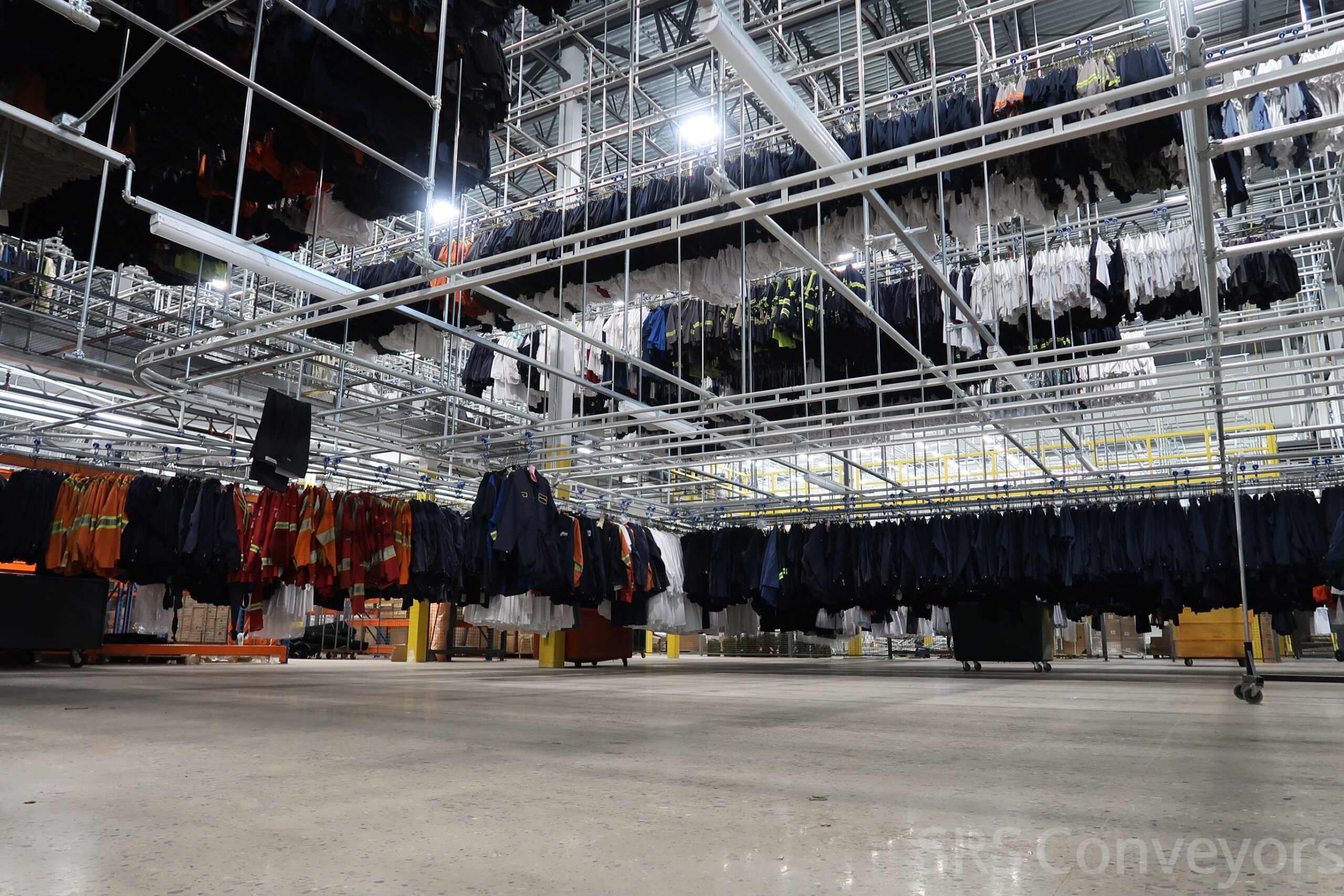

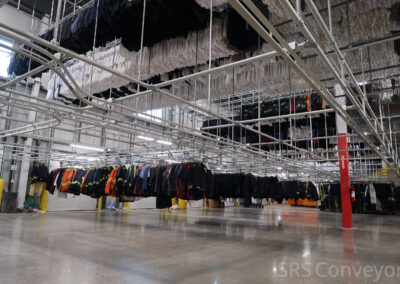

Trolleys can now be taken up and out of the way to multi-level overhead storage with our S-300 Power and Free Trolley System eliminating the need for valuable floor space or the incorporation of a mezzanine. Automatically entered via bar code / RF Chip or manually the S-300 provides the traffic logic required to maximize and keep track of your garment storage needs. Features of the S-300 include:

Self programmable
Stackable queue
Trolley in transit memory
Provisions for future drop lines
Comm. Port line to a PC allows remote sending of drop line destination
Optional optical keypad
Trolley auto feed induction station
Trolley line inventory
Full line sensor indicator
Design provisions for bar code auto read station
Trolley sorting system (open/close gate for each trolley)
Trolley jam/gate indicator stops and release activation
Non-registered trolley indicator
Combined electrical sensor and pneumatic valve electronics make for clean, neat and reliable assembly with expansion for the future and includes IP65 and IP67 protection
Commonly available Category 5 cabling used for inter-module communication wiring
Simple design – easy to maintain

S-400 Garment Retrieval

Retrieving garment trolleys for shipment is simply done by entering the designated T-200 storage or route rail. The S-400 will automatically dispense the selected rail along with the number of trolleys for that particular shipment and transport these trolleys to the loading dock for loading. Features of the S-400 include:

Self programmable
Stackable queue
Trolley in transit memory
Provisions for future drop lines
Comm. Port line to a PC allows remote sending of drop line destination
Trolley line inventory
Main full line trolley sensor indicator
Trolley jam/gate indicator stops conveyor to prevent damage
Automated intermediate stop and release activation
Trolley traffic logic guiding system
Quantified sorted trolley retrieval entry
Combined electrical sensor and pneumatic valve electronics make for clean, neat and reliable assembly with expansion for the future and includes IP65 and IP67 protection
Commonly available Category 5 cabling used for inter-module communication wiring
Simple design – easy to maintain
